SK800 Multi-functional Anchor Drilling Rig

Brand Name : SINOVO

Contact Now

SK800 Multi-functional Anchor Drilling Rig: water and gas are dual-use, one machine is multi-purpose. It is suitable for anti-floating anchor, anchor cable anchoring, slope support, high-pressure rotary spraying, tunnel grouting, submerged hole into the rock, pit casing, core driling, miniature piles, steel pipe piles and so on.

USAGE INFORMATION
Hole Diameter	φ90-φ500mm
Hole Depth	200m
Rod Diameter	φ76/89/102/114mm
Hammer	3”/4”/5”/6”/8”/10”/12”
Pipe Casing	101-219mm
High-pressure Rotary Spray	single/double tube
CYLINDER-DRIVEN PROPULSIONBEAM
Single Propulsion Length	3600mm
Horizontal Drilling Height	2750mm
Gripper Diameter	200mm
Advancing Compensation	1260mm
Maximum Lifting Force	6T
Maximum Propulsion	3.3T
Maximum Lifting Speed	29m/min
Maximum Propulsion Speed	53m/min
Rotary Motor Left And Right	180°
ELECTRIC MOTOR
Power	55+18.5kw
Input Voltage	380v
Ground Clearance	335mm
Weight	7.9T
LengthWidthHeight	6.3x2.2x2.6m
Optional	hydraulic winches oil mist water tanks
POWER HEAD
Output Speed	0-170r/min
Output Torque	9000N.m

SK800 Multi-functional Anchor Drilling Rig

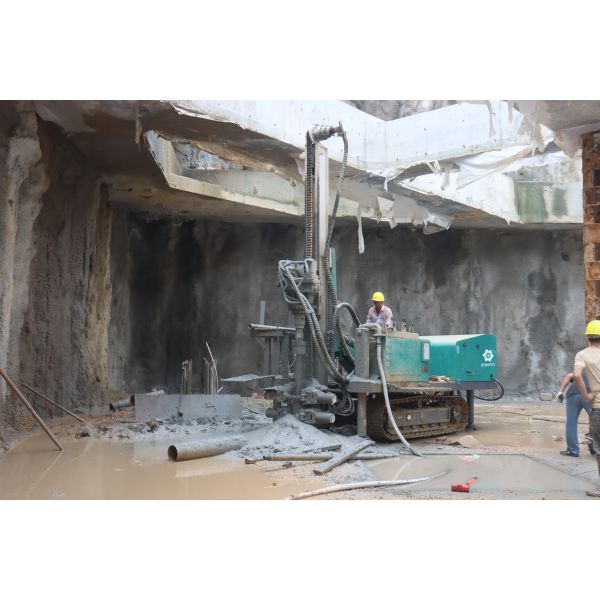

SK800 Multi-functional Anchor Drilling Rig Images
